Mayfair, London

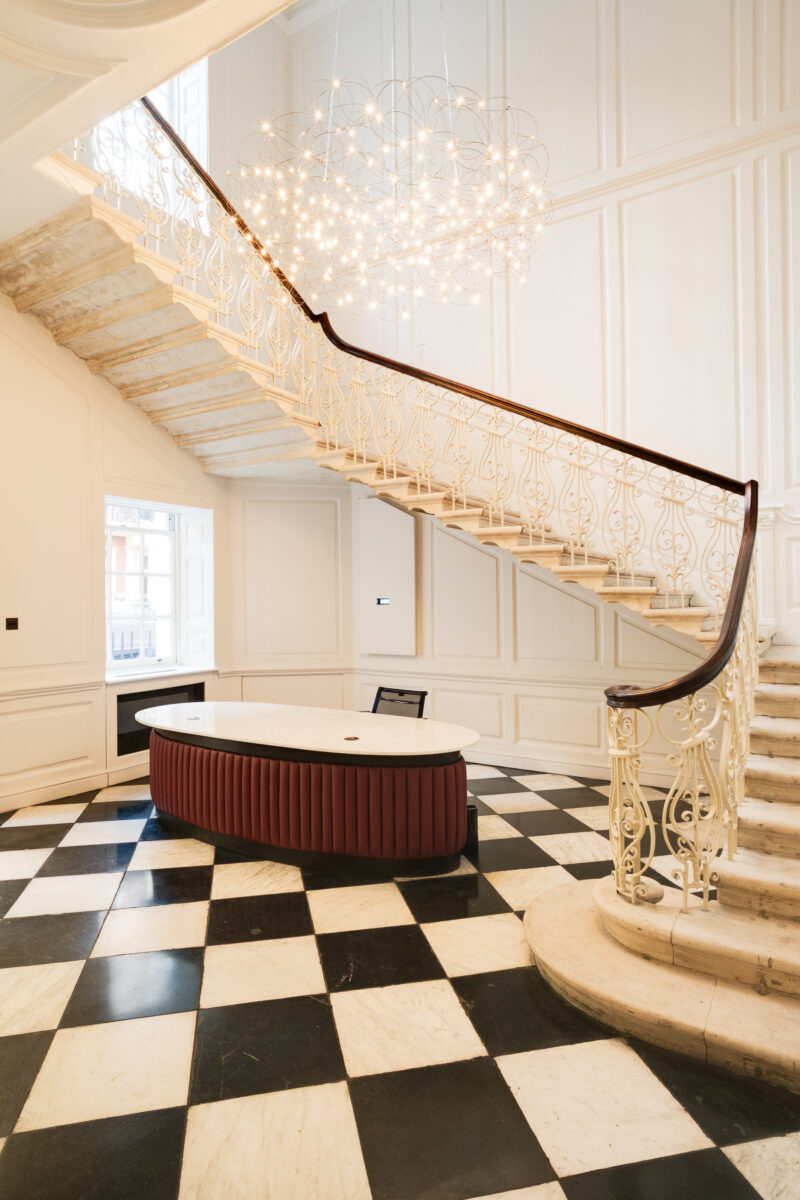

Lightingspiration was approached to create the perfect feature light installation for the reception area at a Grade II* listed property on Grosvenor Street.
PROJECT OVERVIEW
Lightingspiration were recently approached by GTH Architects to create the perfect feature light installation for the reception area at a Grade II* listed property on Grosvenor Street. A property once described by The Survey of London as ‘one of the finest houses on the Grosvenor Estate’, we felt honored that this iconic Jan Pauwels ligtht was chosen.
THE CHALLENGE

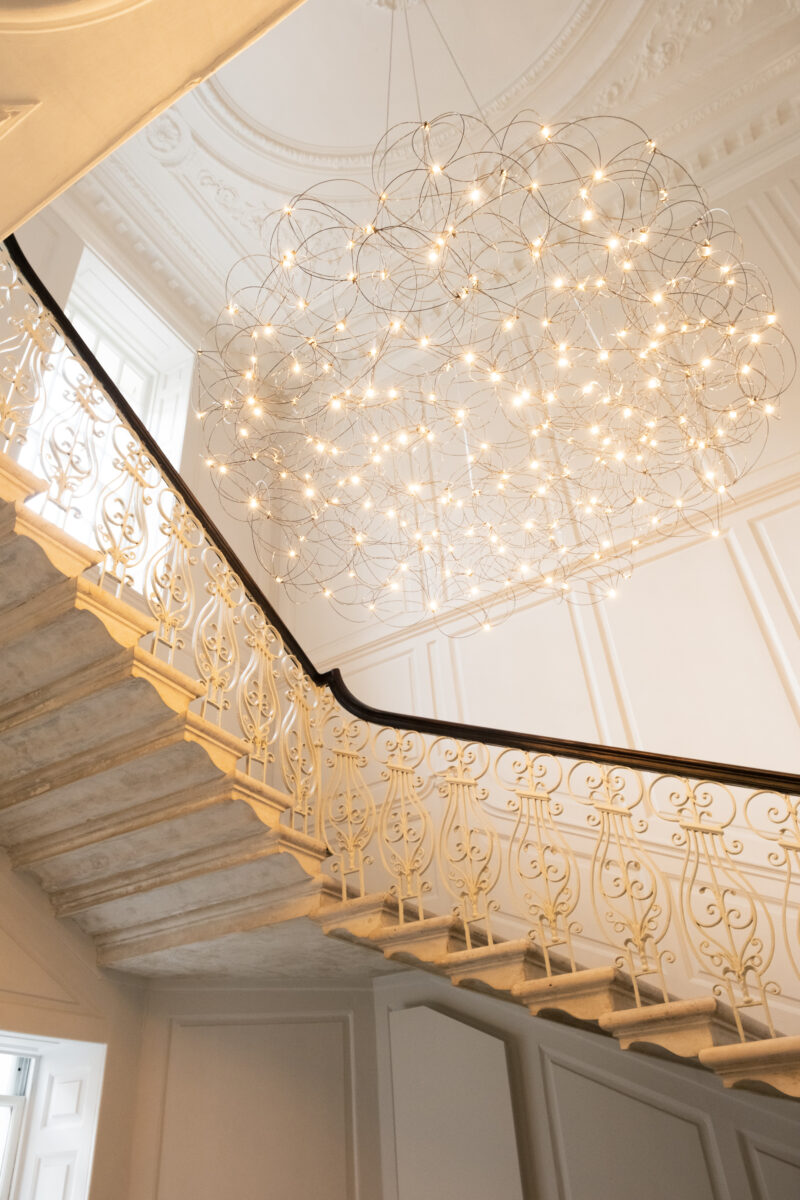

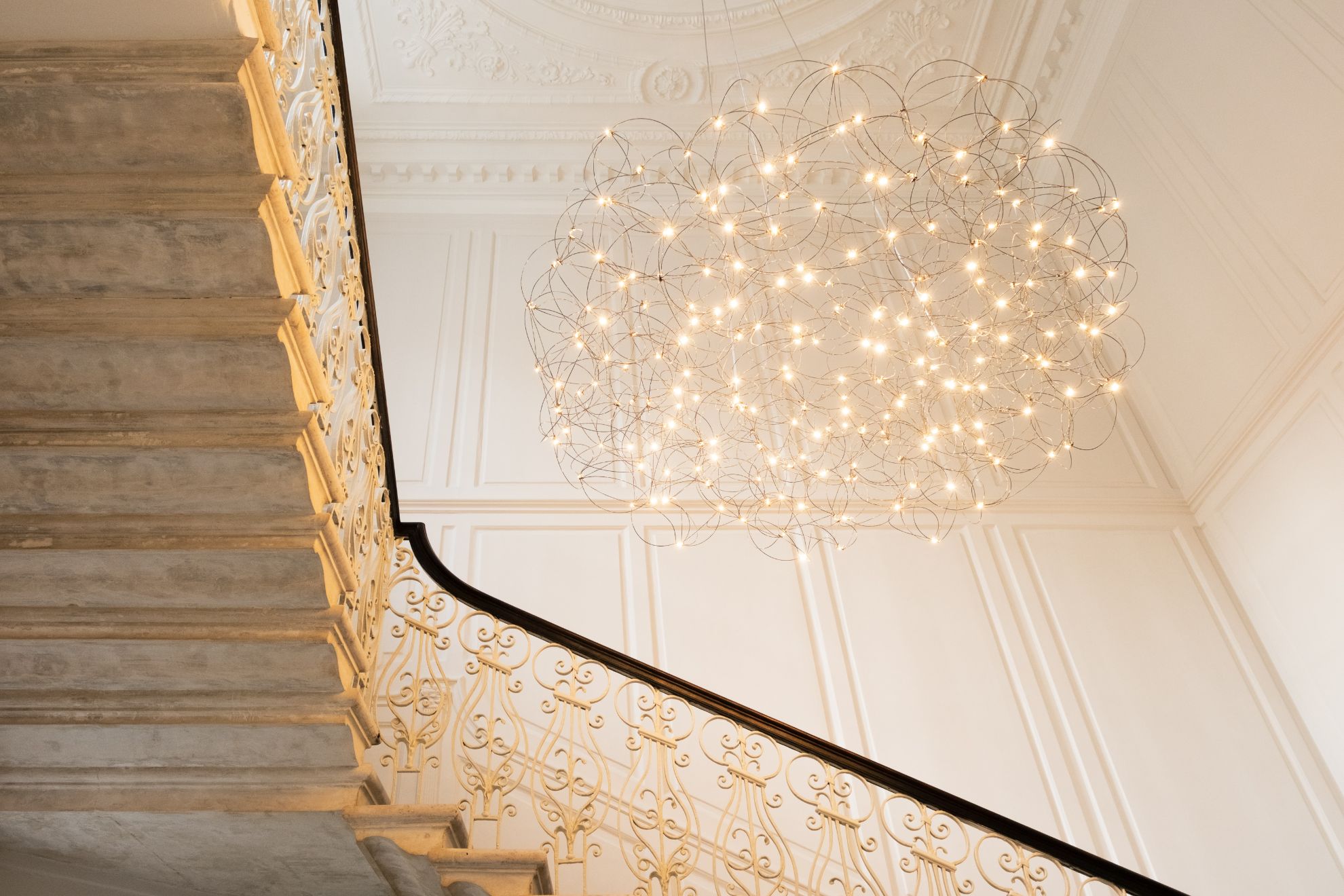

Following initial consultation, the 175cm Sirio Disc chandelier, which features curved rods and tiny LEDS, was proposed, to beautifully match the balustrade. The selected finish was Black-Brass to contrast the surrounding area, whilst the chosen light source was the 2400K LED circuitboard to give a warmer ambiance and a more minimal aesthetic, compared to the more industrial LED bulb (used within other models).
Following refinements to the design – which included a slight alteration in shape from a disc to a ‘donut’! – we set about engaging fully with the wider project team, where many challenges had yet to be overcome… Such as respecting the the classic ornate ceiling rose during installation and integrating emergency lighting.
QUASAR’S SOLUTION
Lighting Output/Levels, To overcome concerns regarding the lighting level and demonstrate compliance, we provided emergency lighting calculations for the area.

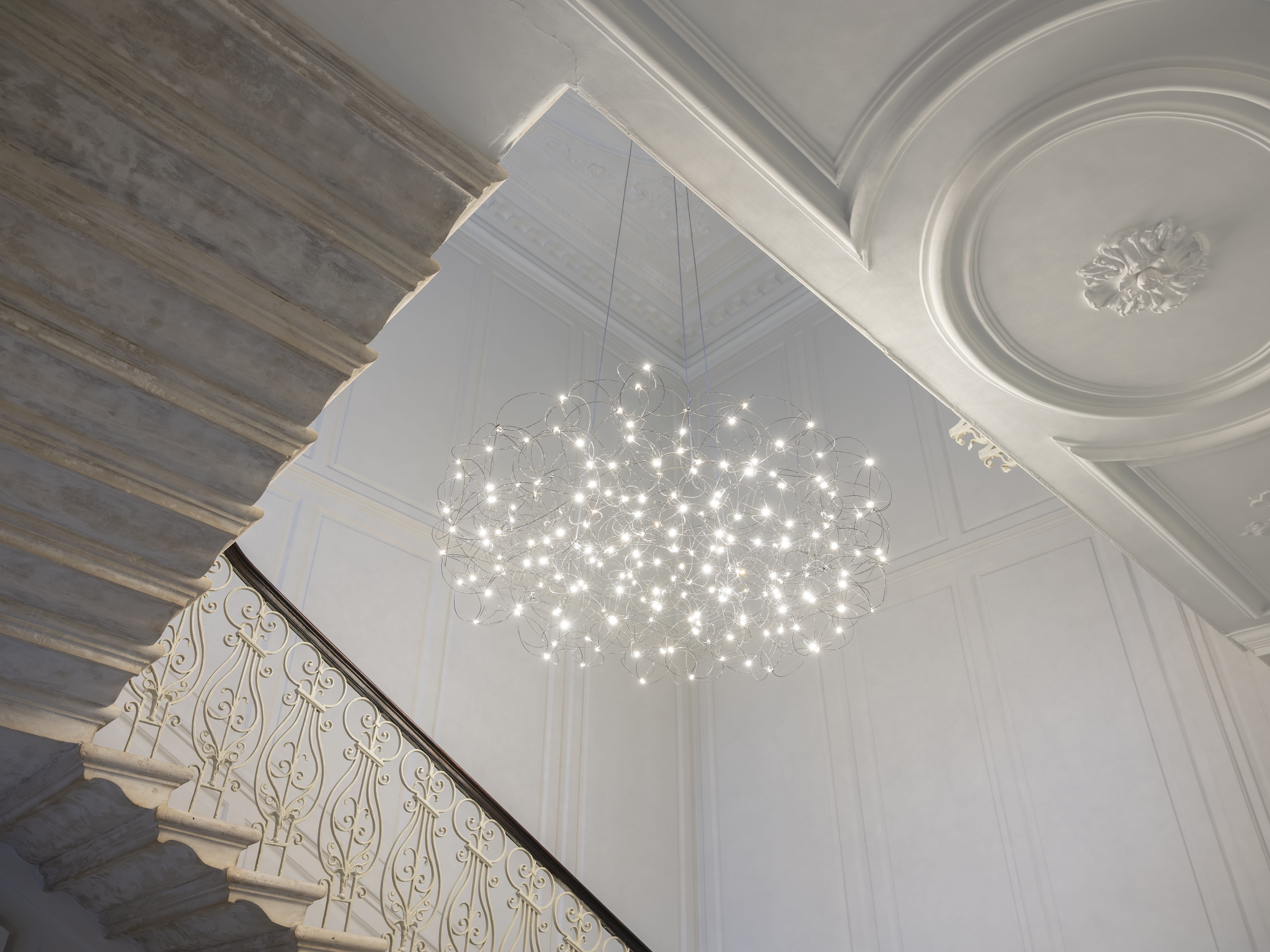

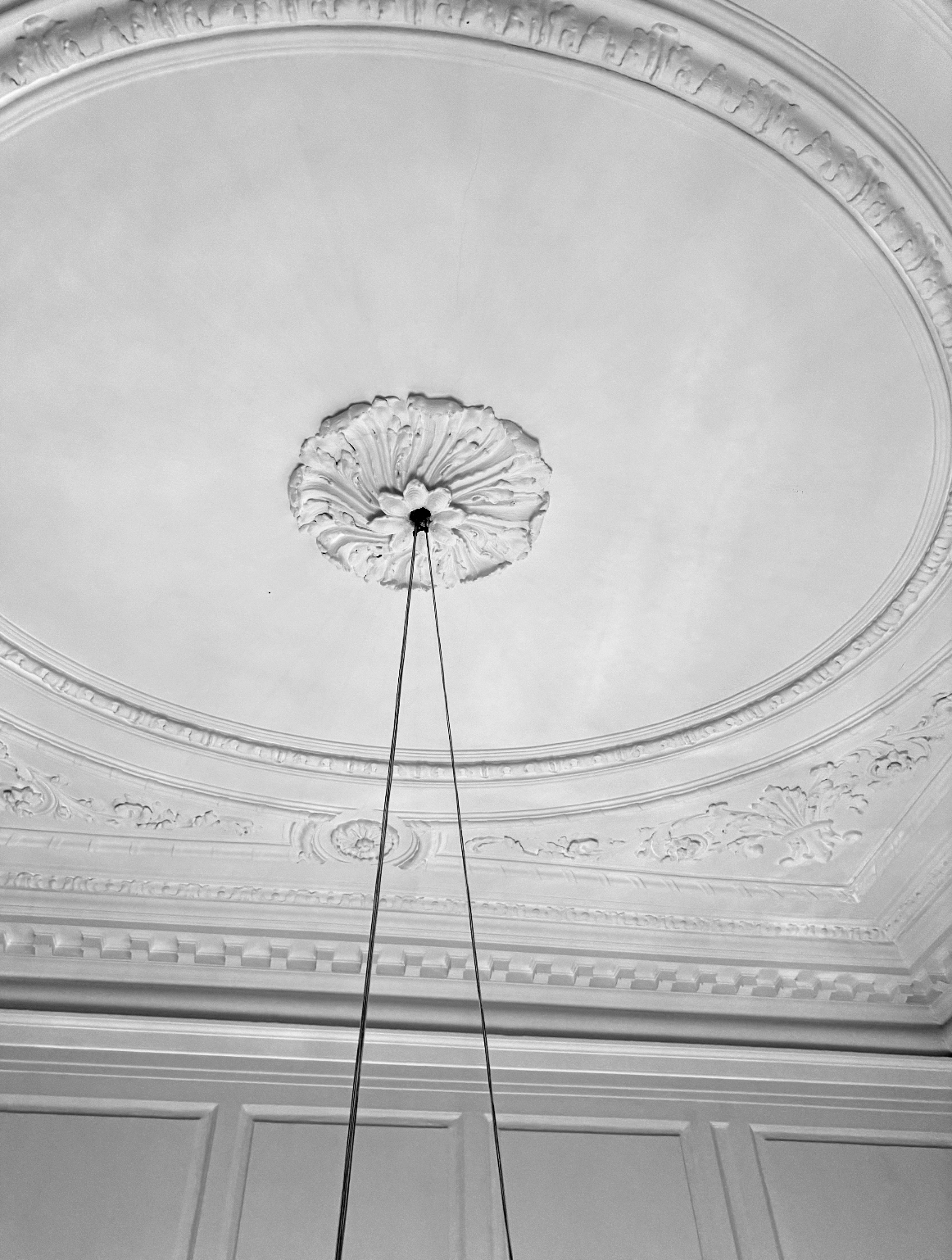

Fixing Method, Due to the buildings Grade II* listing, the ornate ceiling rose had to be retained and protected at all costs during installation and operation.

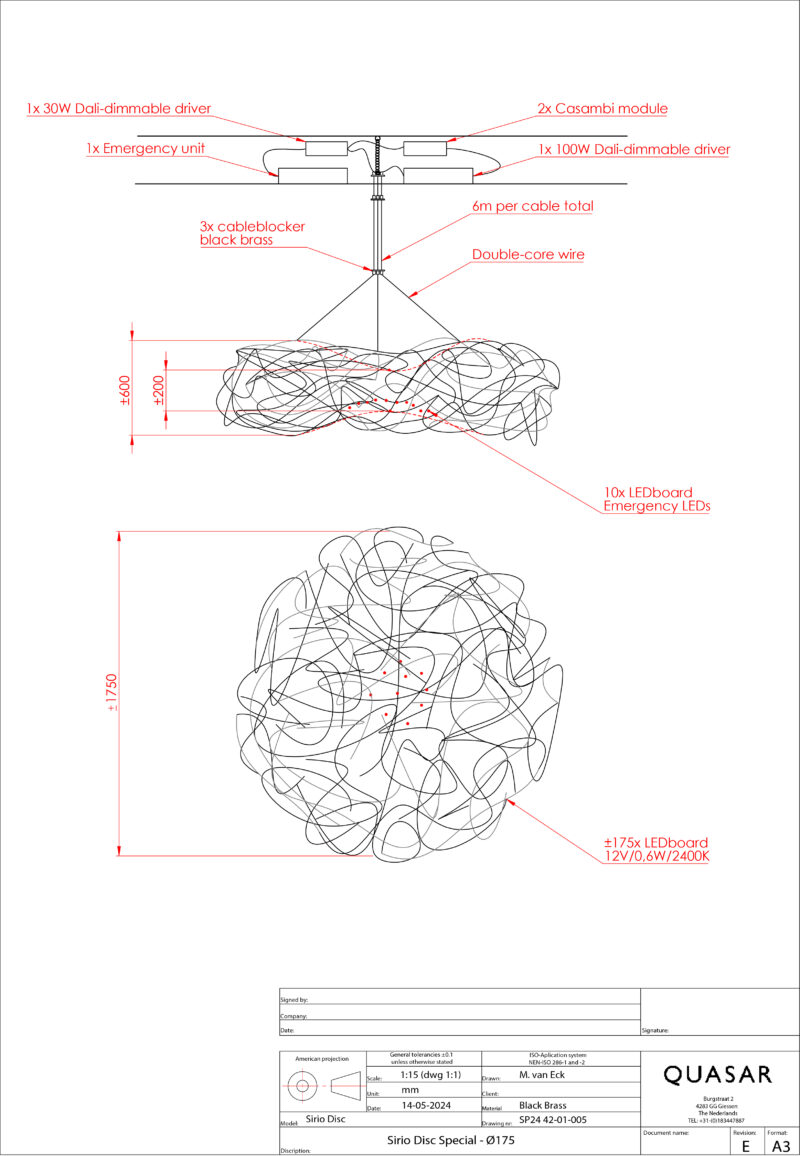

Custom Fixing Method, To combat this, we devised a special suspension method using custom cable blockers to allow the fixture to suspend from three cables, whilst avoiding the cables rubbing against the ceiling rose. All drivers, emergency and control modules could then be placed remotely, above the ceiling (with access from above).
In projects like this, the finest details really are the most important. They also allow us to showcase how our consultative approach, extensive product knowledge and attention to detail can help overcome major obstacles to achieve an incredible result.
ASSEMBLY

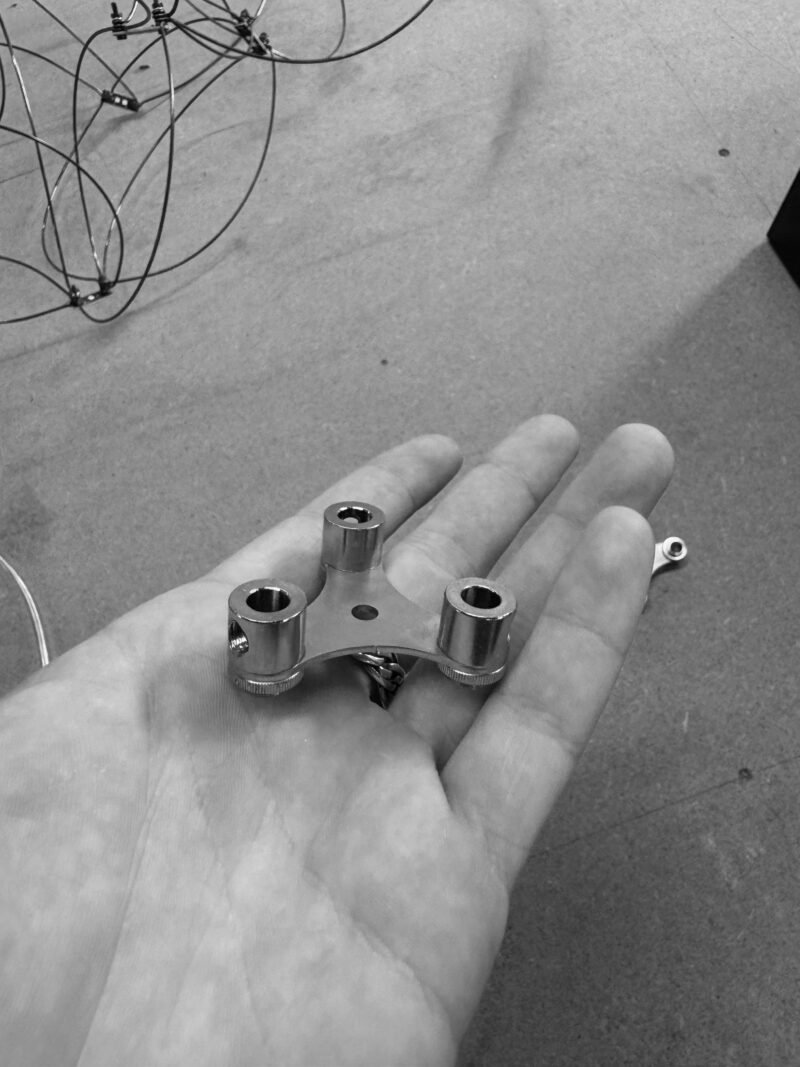

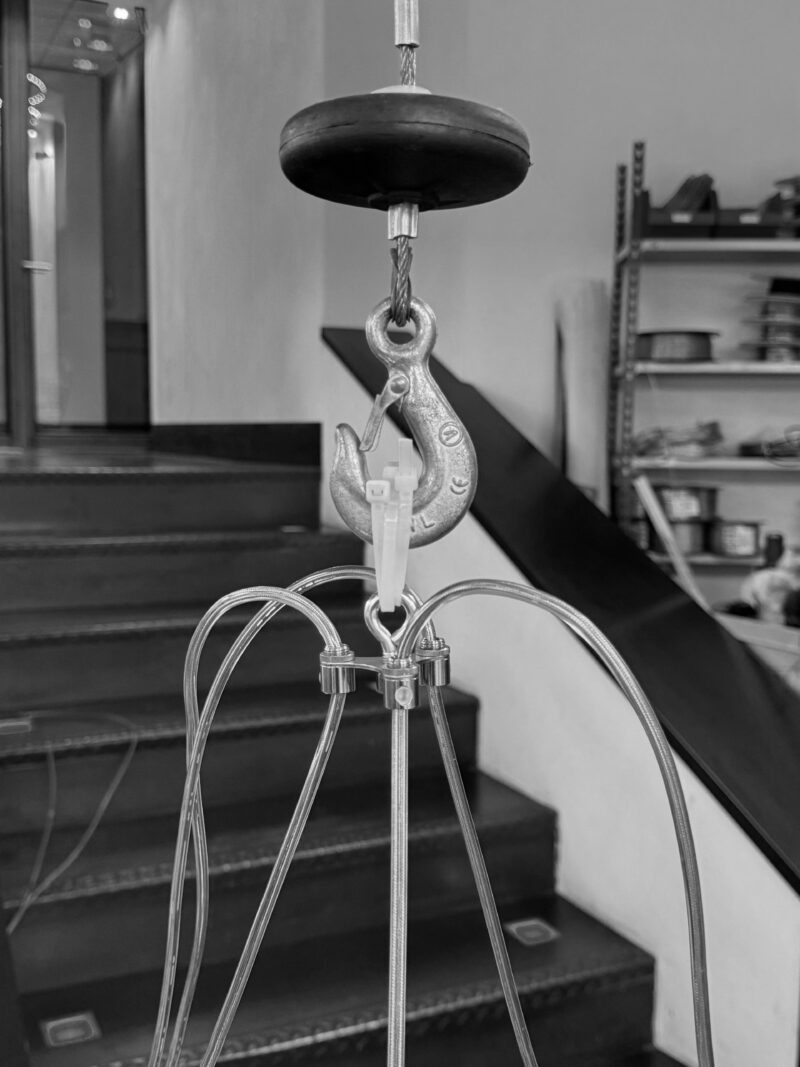

Special parts are made for this suspension to install it as aestheticallypleasing as possible. In addition to the lamp, the ornate ceiling rose should also maintain its attention. Subtlety was a challenge.
EMERGENCY FUNCTION

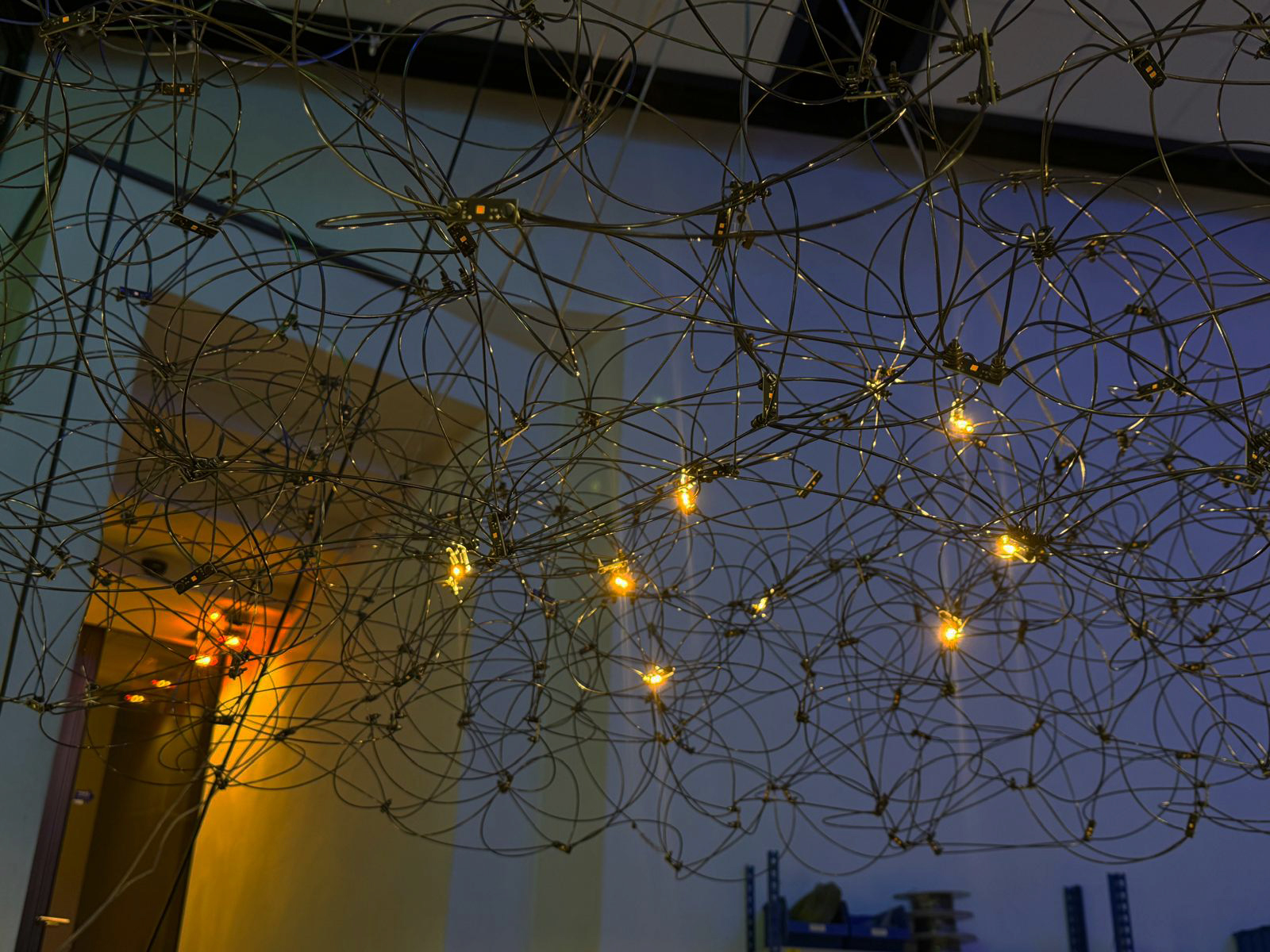

In order to meet regulations, a special emergency lighting function was added to the fixture. During normal operation, the entire luminaire is illuminated, but during ‘emergency mode’ (e.g. power outage), several LEDs will continue operating for 3 hours (as demonstrated on the right). This provides the required emergency lighting level on the stairwell via a secondary emergency circuit and battery pack. An exciting new development for the Jan Pauwels collection!
THE OUTCOME
Because of the close and detailed collaboration between Quasar and the creative partners, Quasar was able to come with a solution respecting the heritage atmosphere of the buildingand was also able to adhere to the technical safety instructions to create an integrated emergency lighting function. Mission accomplished!
REALISATION

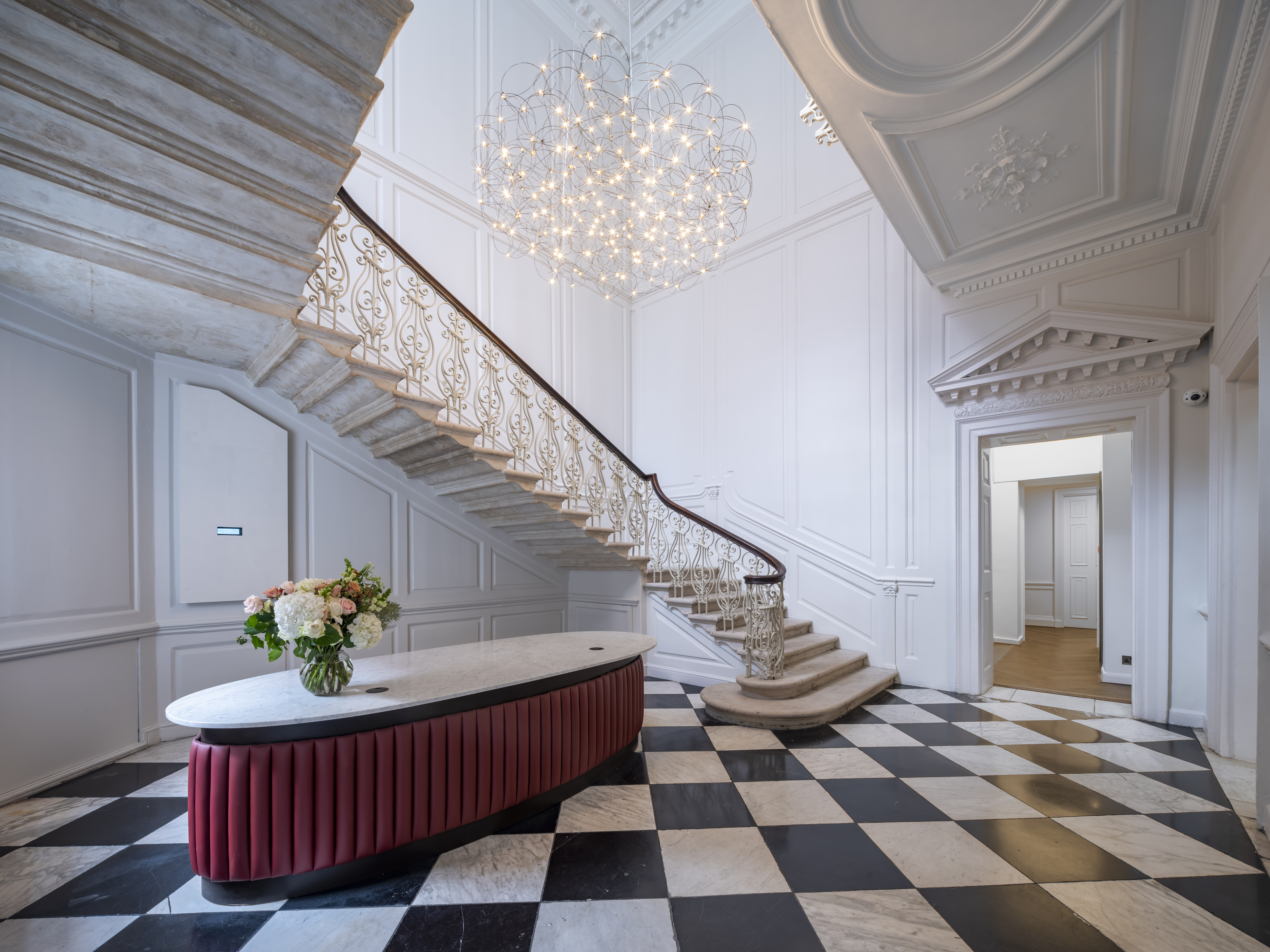

An installation guide made it possible that the fixture got installed by a professional installer. The design now came to life….resulting in a beautiful final outcome.
Credits
- Architect – GTH Architects
- Photography – Robin Pearson
